- Place of Origin: Shandong China
- Brand Name: Mingwei
- Model Number: QTZ63 (PT5610)

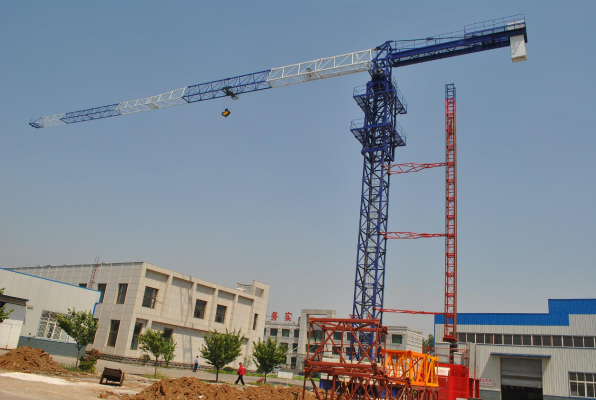

QTZ63 (PT5610) tower crane is our full use of group technology, modular design and finite element analysis technology, the "computer tower crane design platform" as a tool to design the latest domestic hoisting and conveying machinery.
The machine is a flat horizontal jib, trolley, slewing hydraulic lifting crane. Maximum starting weight is 6T; the maximum working range is 56 meters. The maximum lifting torque is: 774KN.m.
Features of the machine:
(1) the performance parameters and technical indicators have reached the leading domestic and international advanced level, the maximum working range of 56 meters, increasing the working space of the tower crane.
(2) the overall shape of the machine is an international fashion, beautiful and generous.
(3) more work, a wide range of use. Basic fixed, wall attached to the two kinds of working methods, applicable to a variety of different construction of the object; independently from the height of 40 meters, attached to a height of 151 meters.
(4) the work speed is high, the speed regulation performance is good, the work is smooth, the efficiency is high.
Lifting mechanism adopts a multi speed winding motor and a single speed ratio reducer, can achieve heavy load and low speed, light load, maximum speed of up to 80.36m/min.
The trolley is in the range of the horizontal arm, which has a good performance of installation in place.
Slewing mechanism adopts winding motor and planetary gear reducer, hydraulic coupling configuration, high capacity, stable starting, reliable work, function with wind in place.
(5) all kinds of safety devices are complete, can ensure safe and reliable work.
(6) the independent side of the cab, a good view, to the operator to create a good working environment.
(7) easy to use convenient maintenance.
The machine weight 34.3t, the total installed capacity of 40.1kW, widely used in high-rise hotels, residential, industrial construction and other large construction projects, is the construction of the vast number of construction enterprises in the construction of the ideal construction machinery.
